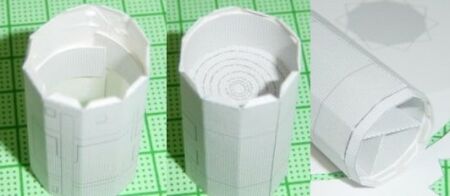

Use these parts to make cylinders. Disregard part number 7 and use the facing rings if desired. I also made domes out of polyclay, cut and superglued them in place |
 |
Make 4 cylinders as shown. |
 |
|
 |

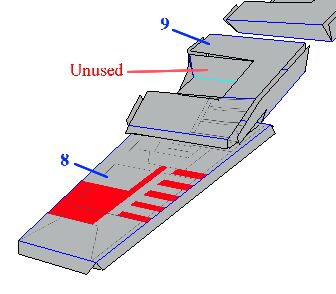

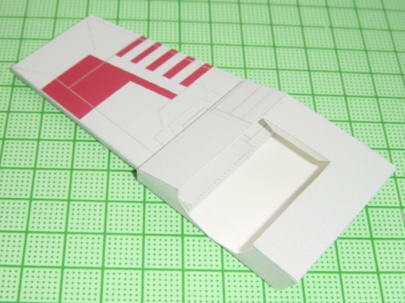

Make 4 wing assemblies as shown. |
 |
Attach engines, and keep track of which one is which! |
 |

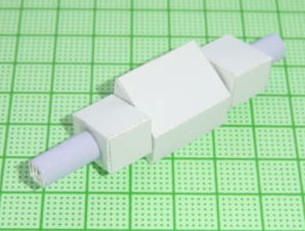

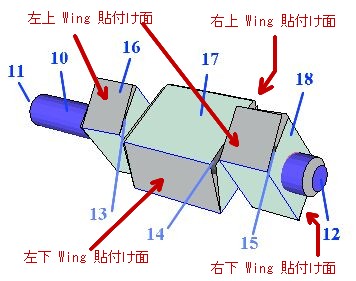

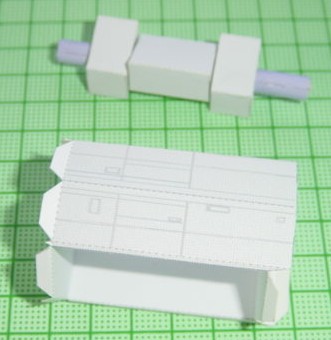

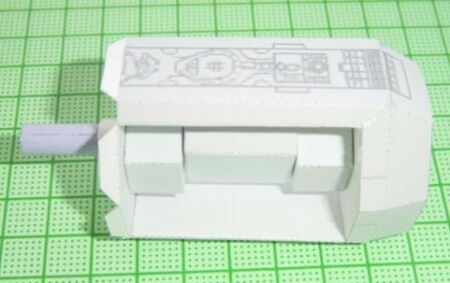

Assemble the hinge parts as shown. |
 |
The center box should move freely. |
 |

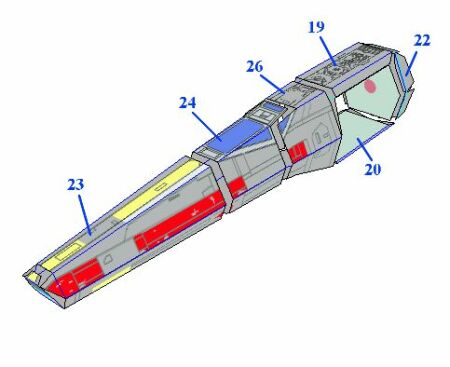

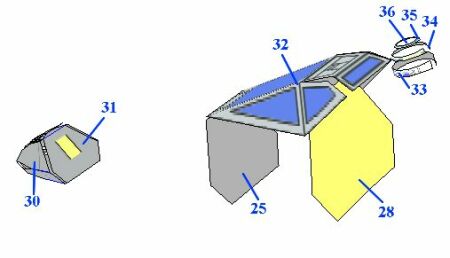

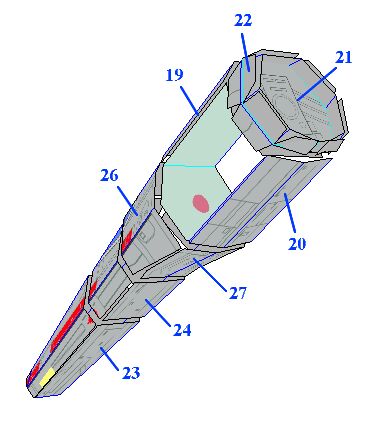

Assemble the fuselage as shown. |
 |
Leave the aft section separate for now. |
 |
Disregard parts 25 and 28 or use them to reinforce the fuselage hinge support. |
 |

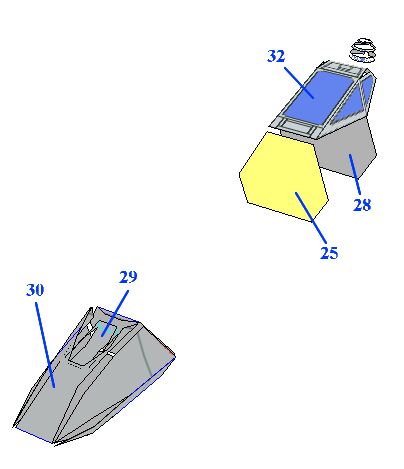

Assemble nose, canopy and droid as shown. |
 |
|
 |
Assemble aft section with hinge as shown. Lots of added reinforcing in this area is a really good idea. |
 |

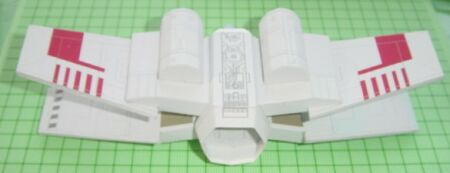

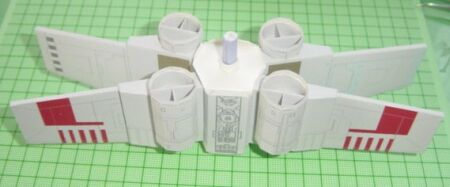

Attach wings as shown. (I used hot glue.) |
 |
|
 |
Attach forward fuselage as shown. |
 |
Attach canopy and R2 unit as shown. |
 |

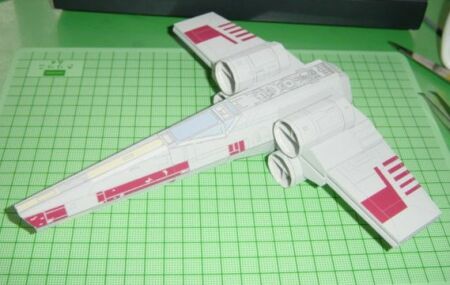

Attach nose piece as shown. |
 |

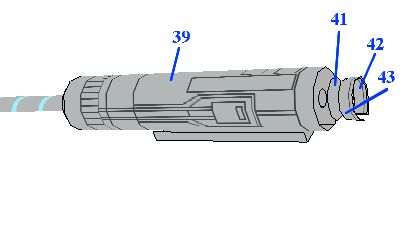

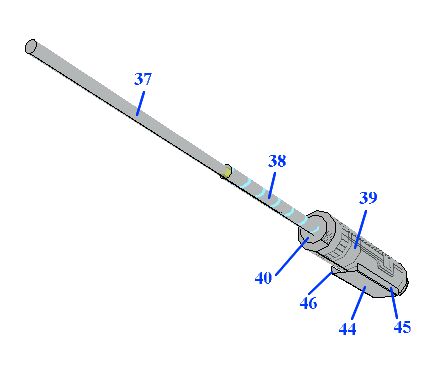

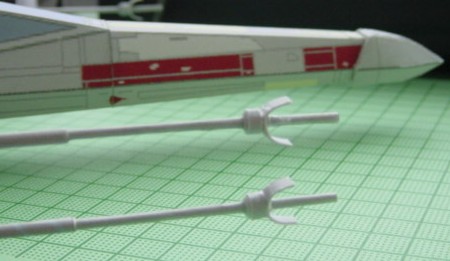

Assemble guns. I used straws and wire instead of parts 37 and 38 for stronger spires. |
 |
Add mounts and aft parts as shown. |
 |
Attach guns to wings as shown. |
 |
I used super glue to reinforce the dishes. |
 |

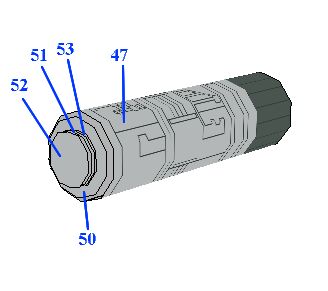

Assemble engines as shown. |
 |
Add forward parts as shown. |
 |

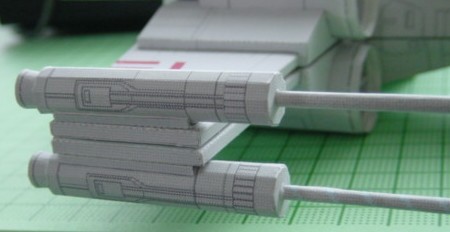

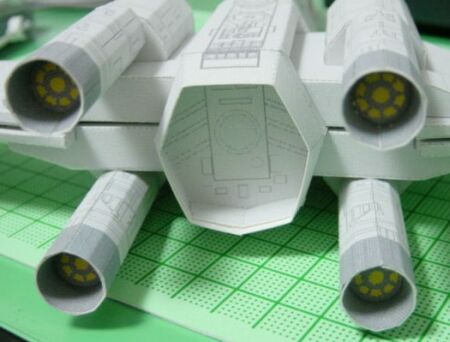

Attach engines as shown. |
 |

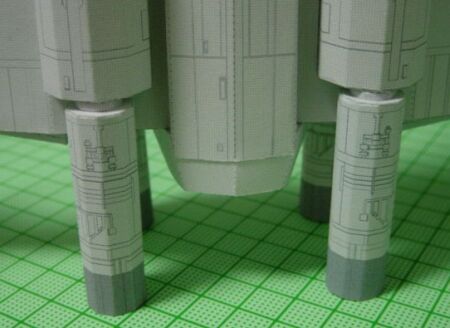

I found it helpful to set the ship on its nozzles and let it finish drying in this position to keep the engines straight. |
 |
Add aft details. See my completed model for a guide. |
 |

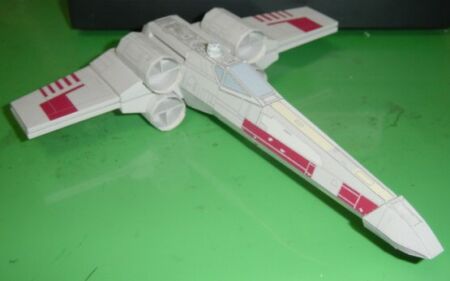

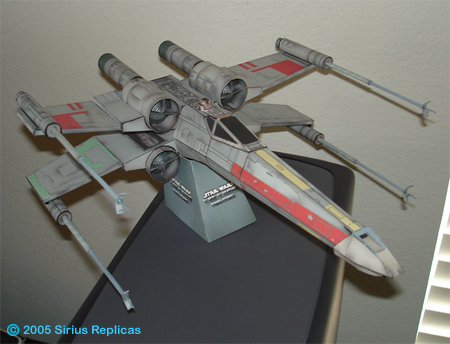

The completed weathered version. |
